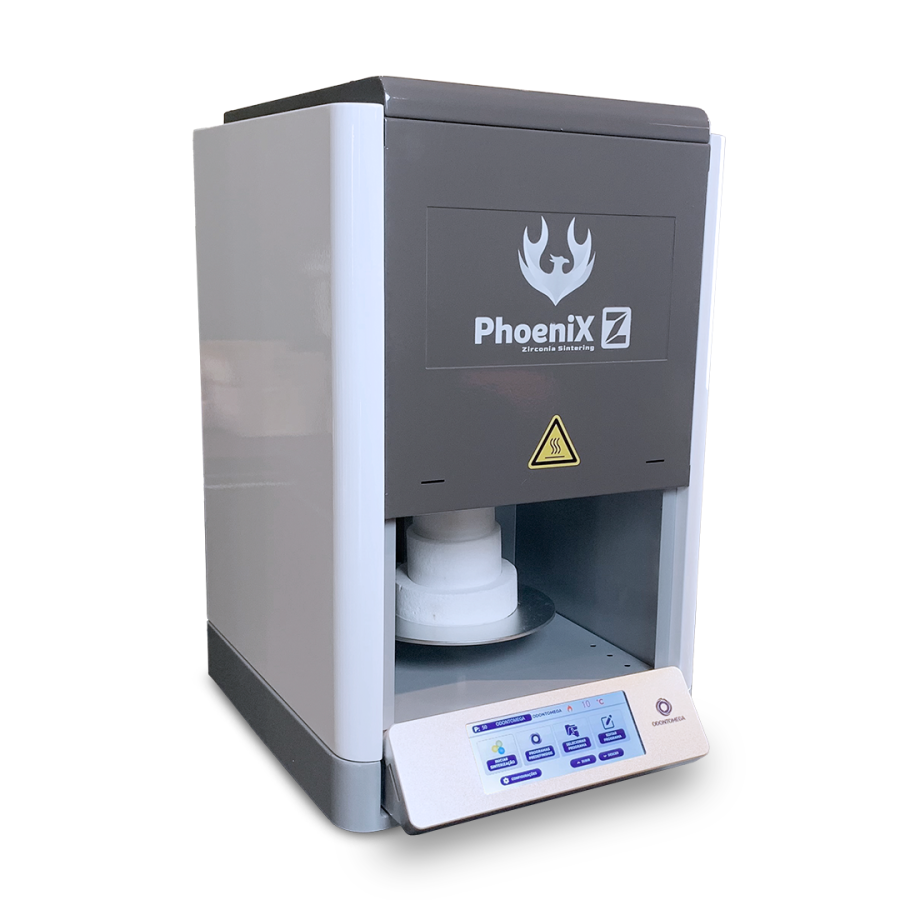

Phoenix Zirconia Sintering Furnace
Ideal for all types of zirconia from any manufacturer. Optimized for ZirkOM Odontomega blocks (pre-set programs included).
The Phoenix Z furnace can be used for fast sintering protocols with compatible zirconias, such as ZirkOM by Odontomega.
● Automatic temperature adjustment with high precision, allowing variations of only +/- 1.5°C.
● Easy to operate and compact, one of the smallest furnaces in the world.
● Smooth and vibration-free motor operation.

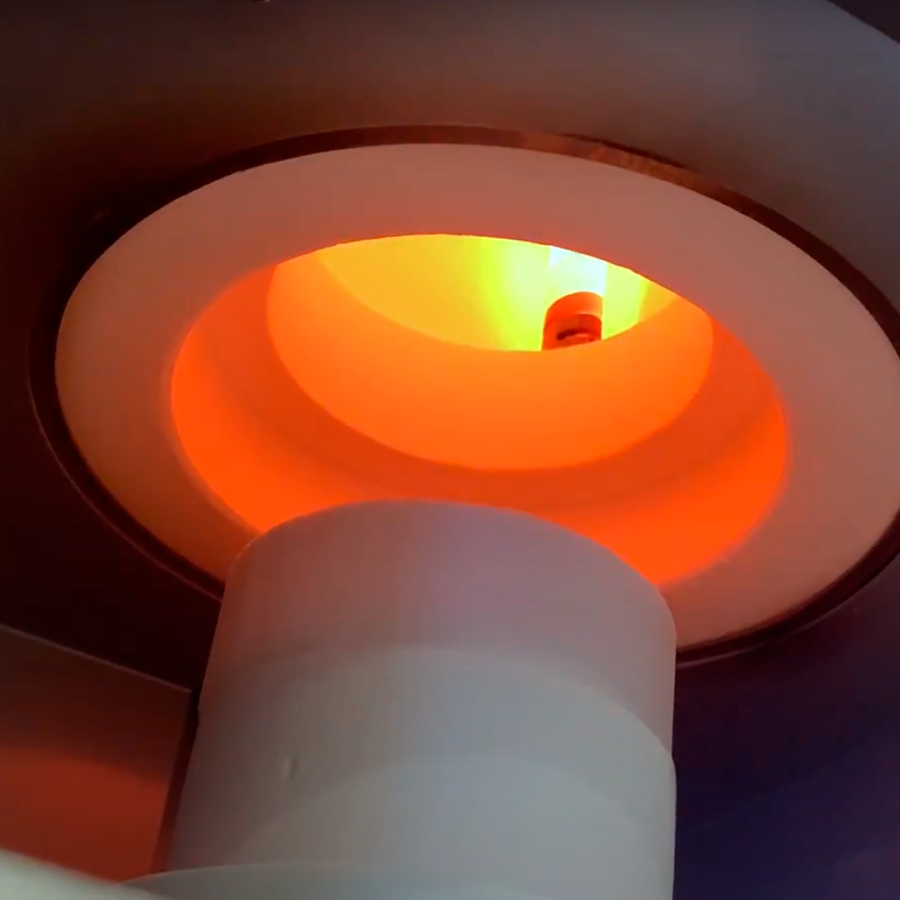

● SiC sintering system with high purity.
● Automatic temperature calibration before each cycle.
● Ideal for both rapid and slow sintering cycles.
● Maximum ideal sintering temperature of 1550°C.
● Lithium disilicate crystallization cycle in as fast as 20 minutes.
● Heating rate of up to 200°C/min.
● Ready for use at any time, no preheating required.
● Fast cooling technology.
● Ability to sinter small parts or full arches.

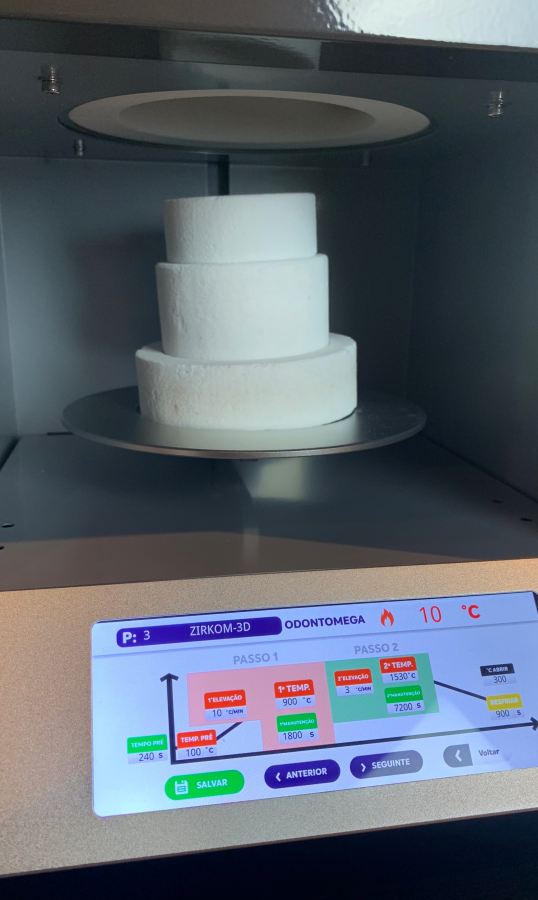

● Touchscreen interface, easy to use.
● 50 customizable programs.
● Sinter up to 30-50 elements simultaneously.
Specifications:
Maximum Sintering Temperature: 1550°C
Weight: 40Kg
Dimensions: 36 x 42cm base and 60cm height
Firing Chamber Dimensions: 90mm
Temperature Increase Speed: 200ºC / min
Maximum Temperature Holding Time: 3 hours
Heating Rate: 200ºC / min max.
Ambient Temperature: 2ºC - 40ºC
Relative Humidity: 80% at 31ºC
Maximum Altitude: 1500m
Operating Range: 230V 50/60Hz
Power: 3000w MAX
Current: 30 ampere at 110V and 20 ampere at 230V
With the purchase of the Phoenix Z, you will receive a complete operational training and included support.
Voltage: 220v
